Function(HC-U91)	Parameter
Main control unit	Professional processor
Number of channels	Dual channel
Display	10.1 inch (1280x800) color LCD screen (brightness adjustable)
Trigger method	Auto-trigger (signal triggered)
Sampling interval	0.025μs~2000μs Multiple options available
Sample length	512 points ~ 2048 points are available in multiple gears
Receiving sensitivity	≤10μV
Measurement range during sound	0~4096000μs
Amplitude measurement range	0～170dB
Band width	10～500kHz
Transmit voltage	125V、250V、500V、1000V Multiple options available
The emission pulse is wide	0.1μs~100μs
Storage capacity	Built-in electronic hard disk (16G) + U disk
Acoustic measurement and reading accuracy	0.025μs
Transfer method	Dedicated USB flash drive, WIFI
Charging power	AC100~240V,50/60Hz,输出12.6V DC,3.0A
Host volume	283×216×41(mm)
Main unit weight	1.8kg
Operating temperature	-20～+60℃
Crack bathymetry range	5～500mm
Crack widening range	0~10mm, accuracy 0.01mm

Function (HC-U81)		Parameter
Main control unit	A8 professional processor
Number of channels	Dual channel
Display	8 inch color LCD screen (1024x768)
Trigger method	Auto-trigger (signal triggered)
Sampling interval	0.025μs~2000μs Multiple options available
Sample length	512 points ~ 2048 points are available in multiple gears
Receiving sensitivity	≤10μV
Measurement range during sound	0~4096000μs
Band width	10～500kHz
Amplitude measurement range	0～170dB
Transmit voltage	125V、250V、500V、1000V Multiple options available
The emission pulse is wide	0.1μs~100μs
Acoustic measurement and reading accuracy	0.025μs
Storage capacity	Built-in electronic hard disk (16G) + U disk
Transfer method	Dedicated USB flash drive, WIFI
Charging power	AC100~240V，50/60Hz，输出12.6VDC，3.0A
Host volume	257×185×56(mm)
Main unit weight	2.8kg
Operating temperature	-20～+60℃
Crack bathymetry range	5～500mm
Crack widening range	0~10mm, accuracy 0.01mm

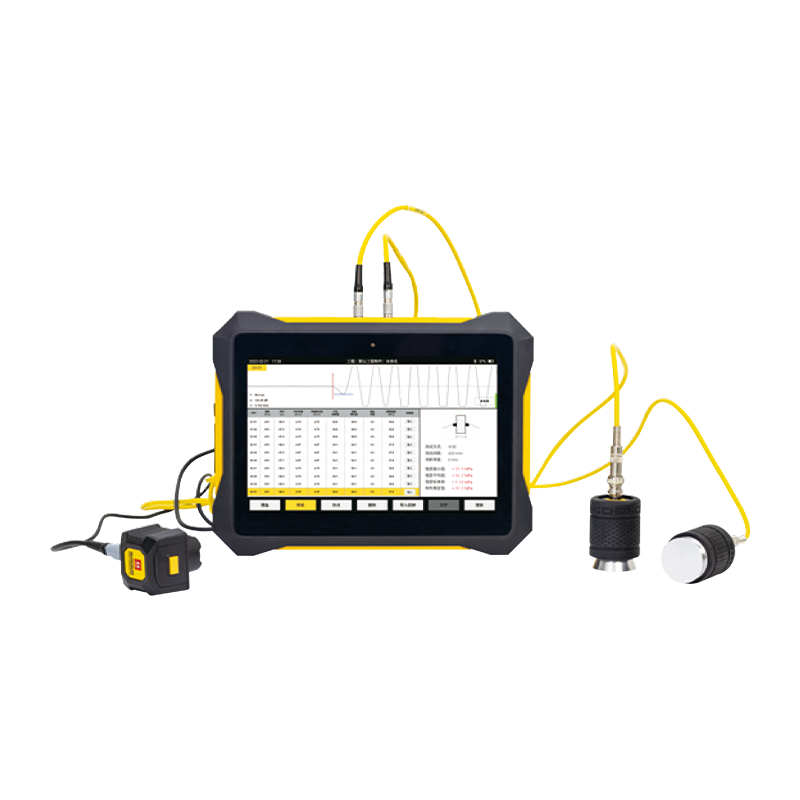

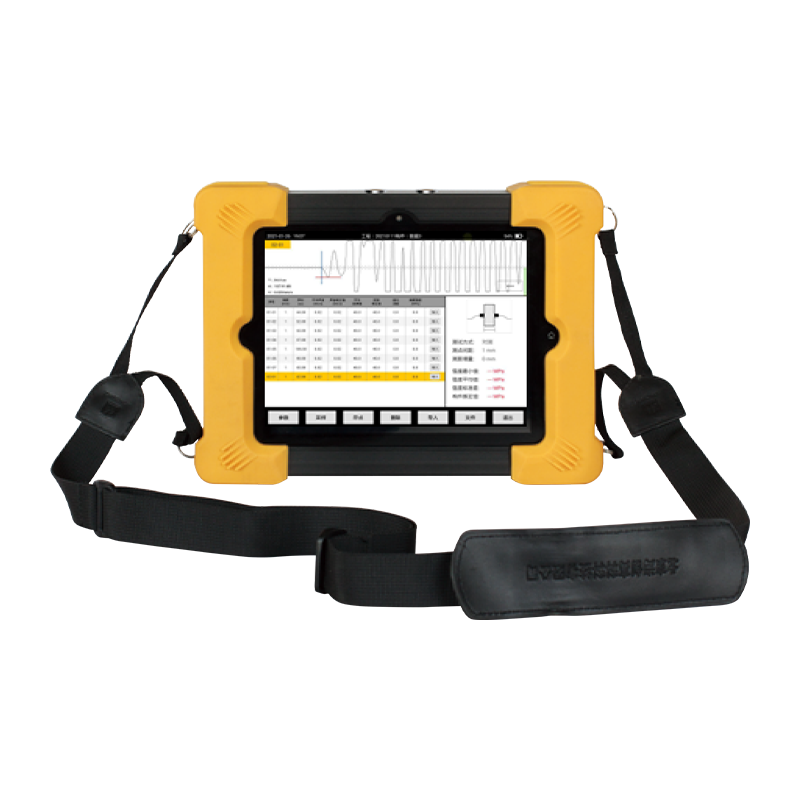

HC-U91/U81 Concrete Ultrasonic Detector
