Function	Parameter
Acquisition meters	Input method	Touch, key
	Input	Chinese, English
	data processing	Data correction, calculation, and statistical analysis are automatically carried out according to specifications
	Display	2.8 inch touch LCD screen (400×240 pixels)
	System capacity	1000 components, the maximum number of measurement areas of the components is 100
	Power supply mode	Rechargeable, built-in 3200mAh high-capacity imported lithium battery
	Automatic shutdown	The maximum can be set for 120 minutes
Mechanical rebound meter	Sensor life	More than 200,000 times
	Strength measurement range	10-60MPa
	Nominal kinetic energy	2,207J
	Striking spring rate	785.0±30N/m
	Impact hammer stroke	75mm
	Pointer friction	0.65±0.15N
	Snap the spring to stretch the length	75±0.3mm
	Strike spring working length	61.5±0.3mm
	Spherical radius at the end of the striking rod	25±1.0mm
	Value consistency error	≤±1 (Difference between the pointer reading of the mechanical rebound meter and the reading of the instrument screen)
	The steel anvil rate determines the rebound value	80±2
	Industry and some local regulations to measure strength and test the compressive strength range	Industry standard: 10~60MPa

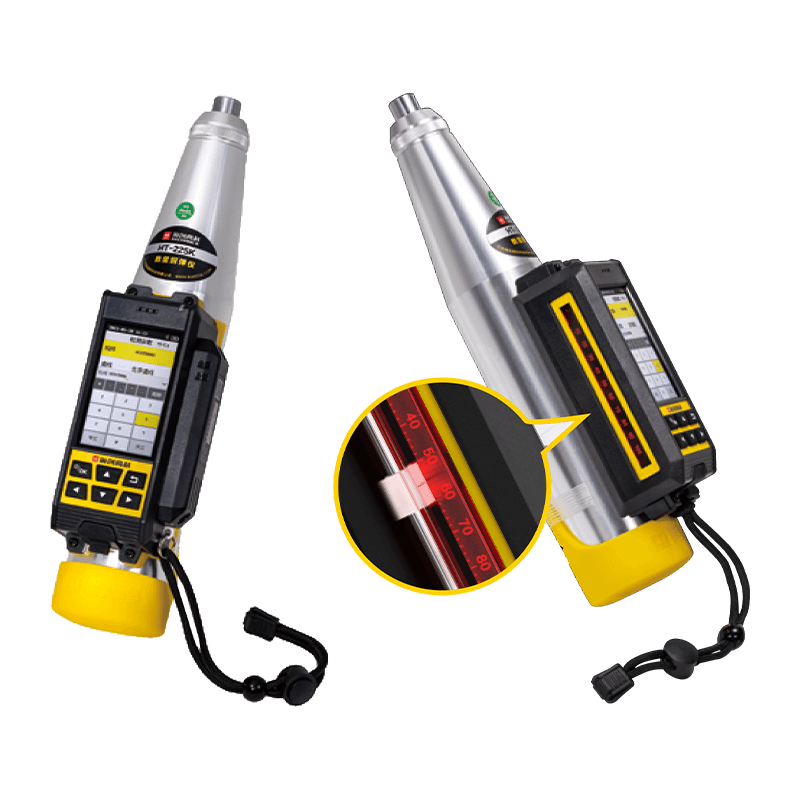

HT-225K/KC / 225J/JC Digital Rebound Tester
