Acoustic wave transmission method for pile integrity detection
Low strain method for pile integrity detection
Underground continuous wall integrity detection
Concrete ultrasonic rebound comprehensive method for compressive strength detection
Concrete internal defect detection and positioning
Concrete crack depth detection
Geological survey, rock mass, concrete and other non-metallic material mechanical properties detection

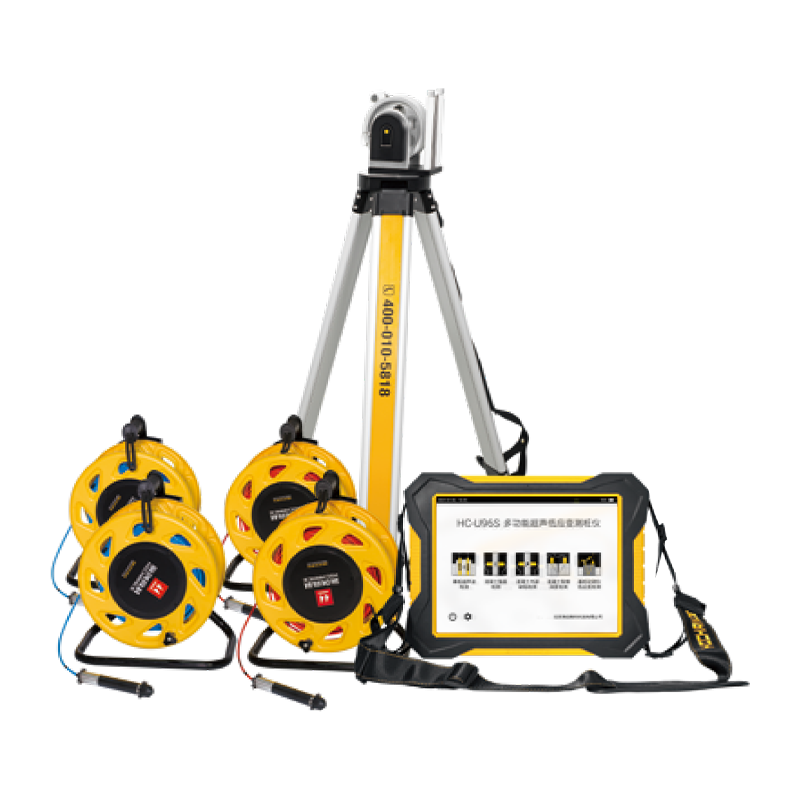

Integrated acoustic wave transmission method and low strain reflection wave method for pile integrity detection, two major functions in one;
One lift can complete 6 profile detection, with a maximum lifting speed of 60m/min; one-transmit and two-receive data are automatically collected, and the entire pile defect range and specific location judgment are displayed in real time;
Automatically obtain the first wave, intelligently judge the sound time and amplitude, and after a large number of engineering pile verification and optimization, it is accurate and reliable;
The integrated radial transducer for interchangeable transmission and reception, combined with pre-amplification technology, the sampling waveform is clear and visible, and the signal strength and signal-to-noise ratio are both first-class in the industry;
True 24-bit A/D Data collection, test waveform is more realistic, pile bottom signal is clearer;
Support frequency domain analysis function, the whole pile frequency and defect frequency calculation is convenient and fast;
Support wireless high-precision depth counting wheel, the waveform of the stored test point can be replayed, overwritten, and deleted at will during the test; the sound time line can also be manually adjusted, and the data correction test results are more accurate;
12.1-inch high-definition, high-brightness industrial touch display, intelligent interactive operation is convenient;
High-strength engineering plastic body, rubber coating process feels fit, prevents falling and bumping, stable and reliable;
Equipped with Bluetooth and WIFI, connected to the Haichuang data platform APP to realize real-time data upload on site, and support software online update;
Equipped with independently rechargeable lithium battery, manual disassembly and flexible replacement, convenient for long-term detection, innovative heat dissipation design, detection under high temperature conditions, no shutdown;
U disk transfer data, support in-machine software upgrade via U disk or wireless network;
Professional data processing and analysis software, powerful functions, can quickly analyze the test data and generate a test report, and can export it conveniently.
