Instrument model
|

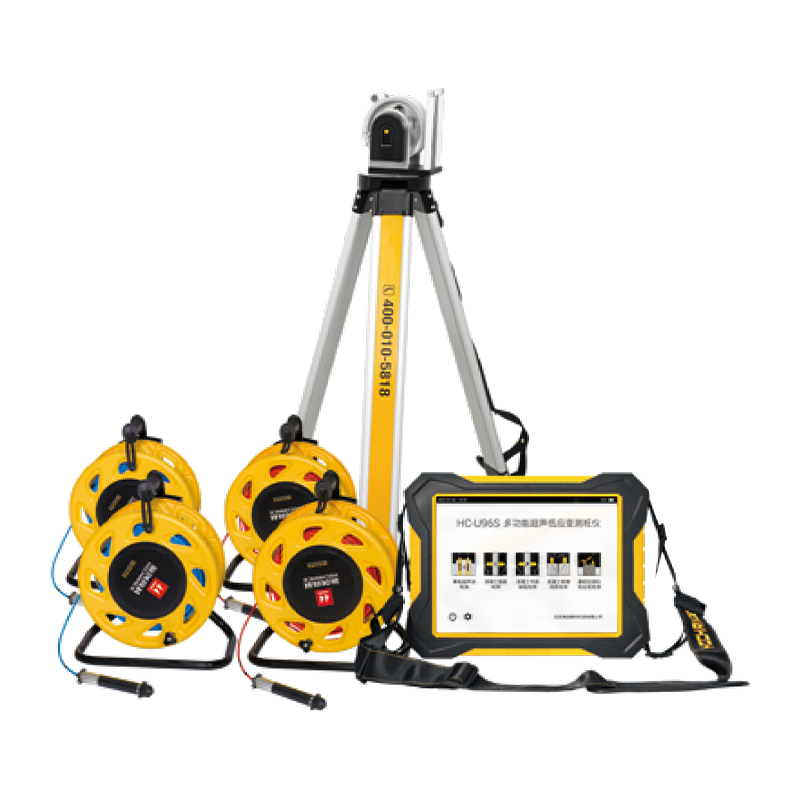

HC-U98
|

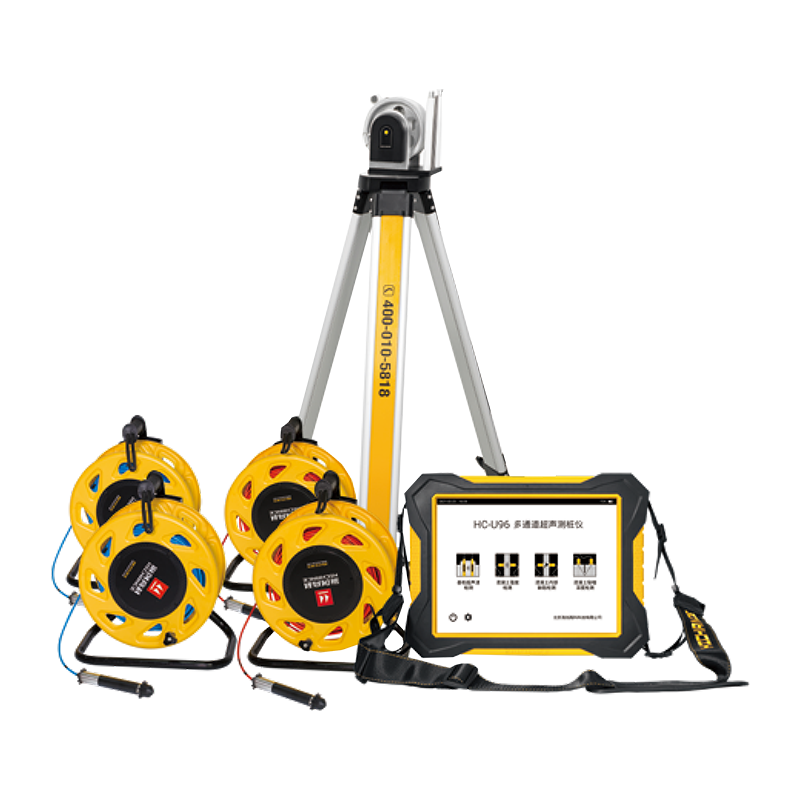

HC-U96
|

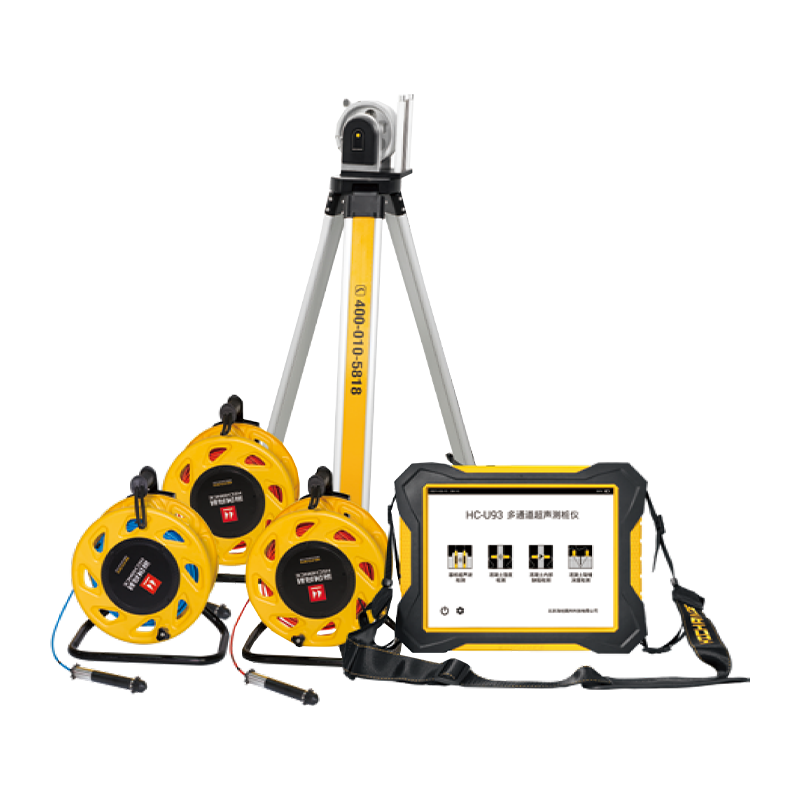

HC-U93
|
|
Main control form
|
A53 quad-core embedded processor clocked at 1.6GHz and 2GB of RAM
|
A9 quad-core embedded processor clocked at 1GHz and 1GB of RAM
|
A9 quad-core embedded processor clocked at 1GHz and 1GB of RAM
|
|
Screen size
|
12.1 inch color LCD screen (1024x768)
|
12.1 inches
|
12.1 inches
|
|
How it works
|
touch screen
|
touch screen
|
touch screen
|
|
Storage mode
|
32G electronic hard drive
|
32G electronic hard drive
|
32G electronic hard drive
|
|
Depth counting method
|
Automatic counting
|
Automatic counting
|
Automatic counting
|
|
Sampling interval
|
0.025μs~2000μs Multiple options available
|
0.025μs~2000μs Multiple options available
|
0.025μs~2000μs Multiple options available
|
|
Measurement range during sound
|
0~8192000μs
|
0~8192000μs
|
0~4096000μs
|
|
Transmit voltage
|
125V、250V、500V、1000V Multiple options available
|
125, 250, 500, 1000 four gears are adjustable
|
125, 250, 500, 1000 four gears are adjustable
|
|
Sample length
|
512 points ~ 4096 points multiple gears are available
|
512, 1024, 2048, 4096 four gears are adjustable
|
512, 1024, 2048 three gears are adjustable
|
|
Gain range
|
0~170dB
|
0~170dB
|
0~170dB
|
|
Gain accuracy
|
0.5dB
|
0.5dB
|
0.5dB
|
|
Number of channels
|
Five channels
|
Four channels
|
Three channels
|
|
Lift the test profile at one time
|
8/10
|
6
|
3
|
|
Maximum lifting speed
|
60m/min
|
60m/min
|
60m/min
|
|
Counting method
|
Two-way counting
|
Two-way counting
|
Two-way counting
|
|
The emission pulse is wide
|
0.1-100μs
|
0.1-100μs
|
0.1-100μs
|
|
Band width
|
1~500kHz
|
1~500kHz
|
1~500kHz
|
|
Amplitude accuracy
|
≤3%
|
≤3%
|
≤3%
|
|
Accuracy of sound time
|
≤0.5%
|
≤0.5%
|
≤0.5%
|
|
Acoustic measurement and reading accuracy
|
0.025μs
|
0.025μs
|
0.025μs
|
|
Receiving sensitivity
|
≤10μv
|
≤10μv
|
≤10μv
|
|
Crosstalk between roads
|
≤1/400
|
≤1/400
|
≤1/400
|
|
Data export
|
USB
|
USB
|
USB
|
|
Data upload mode
|
WIFI、4G
|
WIFI
|
WIFI
|
|
Real-time positioning
|
Built-in 4G module supports real-time positioning
|
|
|
|
Operating temperature
|
-20℃~60℃
|
-20℃~60℃
|
-20℃~60℃
|
|
Power supply mode
|
Removable lithium battery, working greater than 8h
|
Removable lithium battery, working greater than 8h
|
Removable lithium battery, working greater than 8h
|
|
Measurement point spacing
|
1~25cm
|
5~25cm
|
5~25cm
|
|
Minimum measuring distance
|
5cm
|
5cm
|
5cm
|
|
Dimensions
|
340×256×58mm
|
340×256×58mm
|
340×256×58mm
|
|
Weight
|
3.5kg
|
3.5kg
|
3.5kg
|
