Technical parameters of the host
Main control unit	High-performance ARM processor
Display screen	7-inch true color LCD display resolution: 1280*800
Storage method	64GB internal storage (supports Micro-SD card expansion)
How it works	Capacitive touch screen
Transfer method	WIFI, USB flash drive, USB cable
Power supply mode	Built-in - lithium battery is not removable
Working hours	>15(h)
Network connection method	WIFI, Bluetooth
Operating ambient temperature	-10～+40(℃)
Working environment humidity	≤90%RH
Cloud upload	In the tank
Host form factor	215.56×135.8×18.9mm
Main unit weight	558g
Technical parameters of wireless pressure sensors
Measurement range	100kN/200kN/300kN/500kN/1000kN
Comprehensive accuracy	0.5%FS
Display resolution	0.01kN
Wireless transmission distance	35m
Power supply mode	Built-in - lithium battery is not removable
Working hours	>48(h)
Technical parameters of wireless displacement sensors
Measurement range	50mm/100mm single, unlimited cumulative stroke
Relative linear accuracy	±0.04%FS/±0.02%FS
Display resolution	0.01mm
Wireless transmission distance	35m
Power supply mode	Built-in - dry battery removable
Working hours	>3000(h)

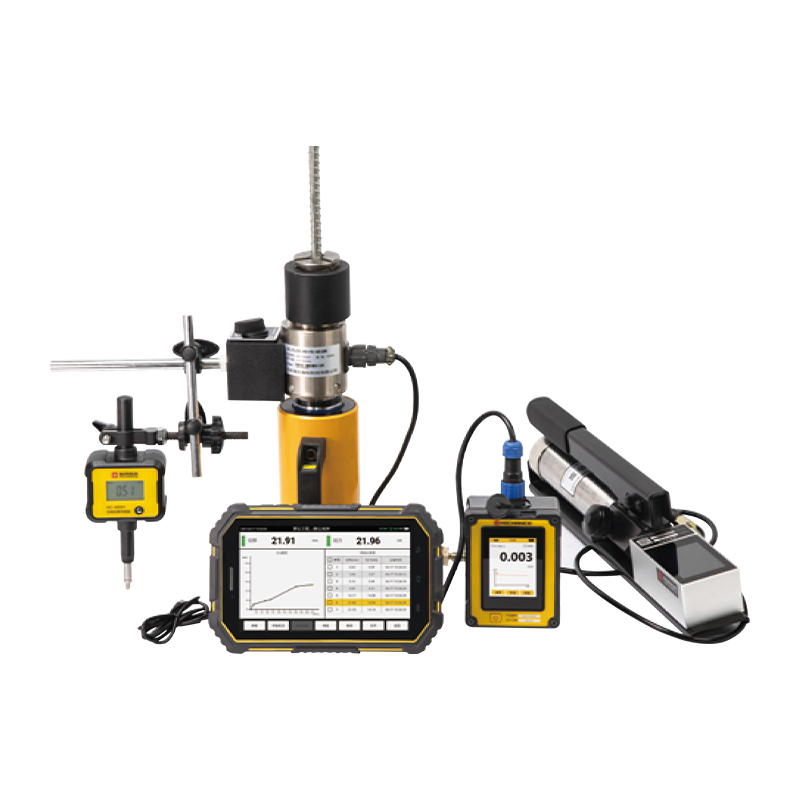

HC-MG01 Wireless Anchor Tester
