Product Features

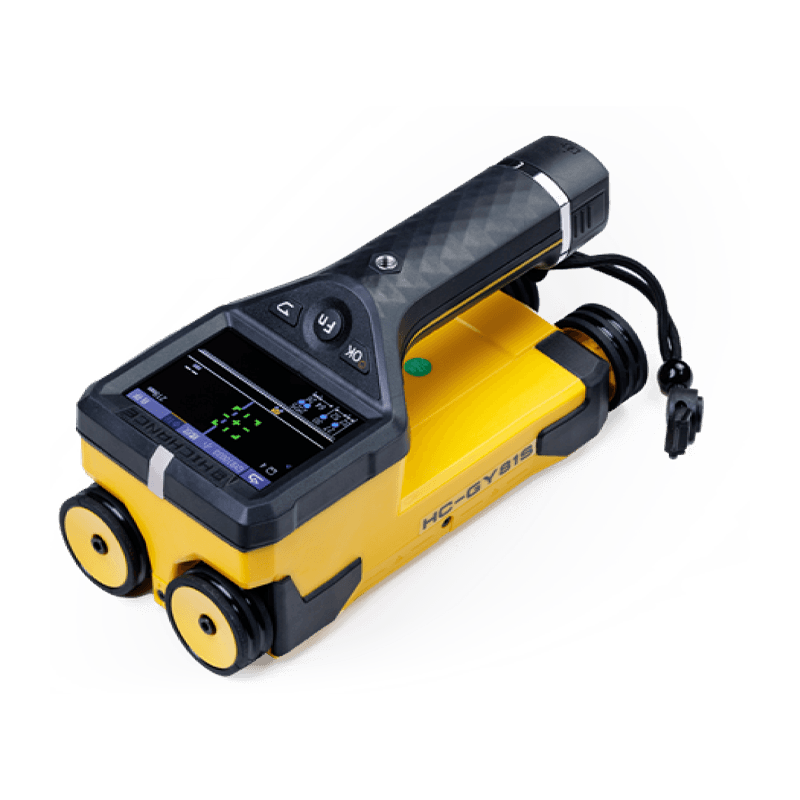

HC-GY81/GY81S：
High quality appearance, 3.2-inch high-resolution color LCD screen, equipped with capacitive touch screen, new UI design, paired with two themes, more user-friendly human-computer interaction;
1.54-inch brand new synchronous display, equipped with capacitive touch screen, wireless control, no need to climb high for safer and more efficient detection (only supported by HC-GY81S);
Built in full network 4G module and SIM card, supports real-time positioning, and instrument data is directly uploaded to the server;
Built in temperature sensor, sensing and detecting changes in environmental temperature, intelligently prompting calibration, making detection data more accurate;
Optimize the steel bar determination algorithm in various scanning modes to achieve more accurate steel bar positioning;
The thickness detection mode has a protective layer accuracy of 0.1mm and supports dual channel AD value prompts on both sides, with automatic center reading;
JGJ detection function, realizing single point retesting, automatically generating on-site measurement point thumbnails, customizing detection sequence, meeting the testing requirements of the testing regulations;
Added block detection mode, the upper computer can generate 3D models;
Built in low-power Bluetooth chip, connected to the Haichuang data platform APP, to achieve real-time uploading of detection data;
Large capacity storage space, capable of storing 10000 components/550000 measurement points;
The PC supports Bluetooth reading, making data reading more convenient and reducing the loss of the host USB port, thus extending its lifespan;
Professional testing data processing and analysis software, easy to complete data analysis, printing and exporting reports.

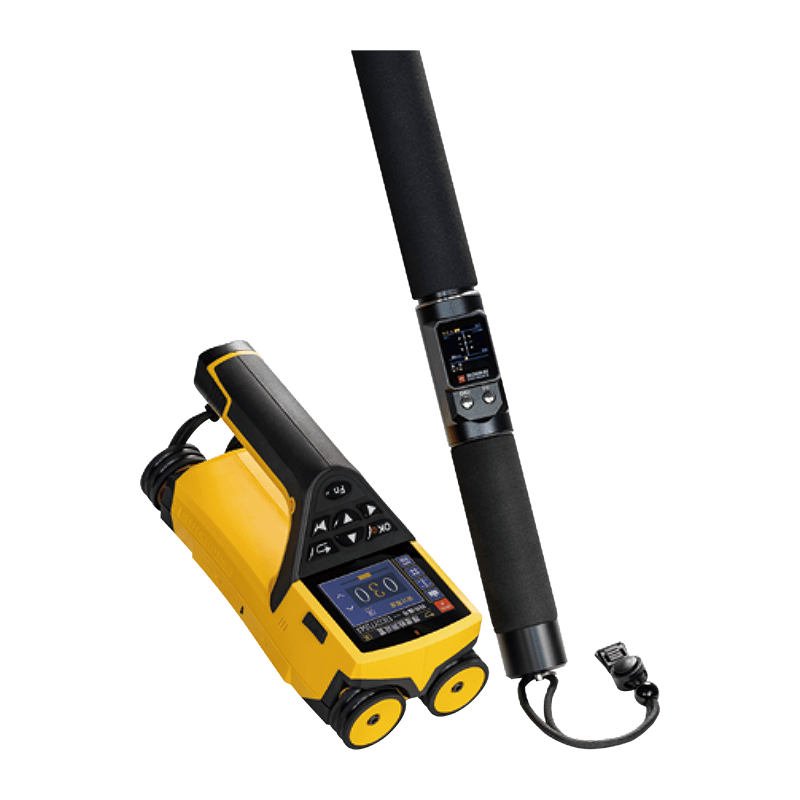

HC-GY71S：
High resolution color touch screen, supporting full screen touch interaction operation, convenient to use and higher efficiency;
The thickness of the steel reinforcement protective layer, the position and spacing of the steel reinforcement are displayed on the same screen, and the automatic identification of whether the thickness value meets the design value is supported;
Innovative synchronous display, remote control of the host and real-time synchronization of data to avoid accidents caused by climbing and falling, and more efficient and safe detection;
Optimize the waveform scanning mode reinforcement judgment algorithm, improve the ability to identify dense reinforcement, and make the thickness value of the protective layer more accurate;
Upgraded thickness detection mode, with protection layer accuracy up to 0.1mm, supporting left and right dual channel AD value prompts, and automatic center interpretation;
Built in Bluetooth chip, connected to the Haichuang Data Platform APP for real-time uploading of detection data;
Horizontal and vertical laser positioning, real-time display of steel bar positions and adjacent steel bar centerlines, multiple reminders from aiming frames and indicator lights, convenient for steel bar positioning and core drilling;
Supports multiple detection modes suitable for different special measurement environments, including avoiding reinforcement detection, reverse correction detection, reverse value detection, concave surface detection, and convex surface detection;
JGJ detection automatically generates on-site measurement point thumbnails and customizes the detection sequence;
Support remote instrument software upgrades, enjoy convenient service support, PC software installation without drivers, and easily complete data processing and report generation.
HC-GY62：
Brand new exterior design, compact size, light weight, and easy to carry;
The thickness detection mode has a protective layer accuracy of 0.1mm and supports dual channel AD value prompts on both sides, with automatic center reading;
JGJ detection function, realizing single point retesting, automatically generating on-site measurement point thumbnail, meeting the testing requirements of the inspection regulations;
Built in low-power Bluetooth chip, connected to the Haichuang data platform APP, to achieve real-time uploading of detection data;
The PC supports Bluetooth data transmission, making data reading more convenient, reducing host USB port loss, and extending lifespan;
Equipped with a large capacity lithium battery and low-power design, the battery can work continuously for about 24 hours after being fully charged;
Vertical laser positioning, real-time display of steel bar position and adjacent steel bar centerline, multiple reminders from aiming frame and indicator light, convenient for steel bar positioning and core drilling;
Professional testing data processing and analysis software that can generate 3D models, easily complete data analysis and processing, print and export reports.
Application Area：
■ The integrated rebar scanner is a portable intelligent non-destructive testing device used to detect the position of rebars inside reinforced concrete structures, the thickness of rebar protective layers, the direction and distribution of rebars. It can also detect magnetic bodies and conductors in non-magnetic and non-conductive media.
