OEM/ODM WDW Series Microcomputer Controlled Ring Stiffness Testing Machine Suppliers, Factory - Zhejiang Yiyu Instrument Equipment Co., Ltd.

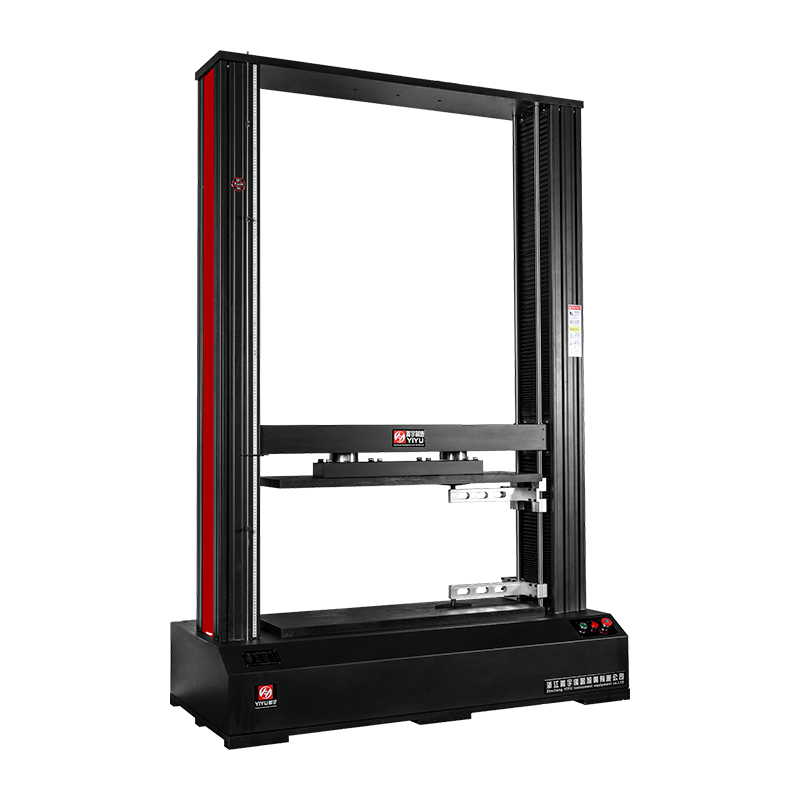

WDW Series Microcomputer Controlled Ring Stiffness Testing Machine

2025 07-30

New standard for aerospace material testing: ultra-high tonnage tensile machine becomes an essential equipment
The era of new materials has spurred the upgrading of testing technology With the development of the aerospace industry towards lightweight and high-strength, t...
2025 07-23

The key role of Universal Test Machine in building material testing
With the continuous development of the construction industry, the quality control of building materials has become particularly important. The performance of bu...
2025 07-16

Key applications of universal test machine price in aerospace material research and development
With the continuous advancement of aerospace technology, the requirements for materials are becoming more and more stringent. The safety, reliability and perfor...
2025 07-04

From type to application: Overview of the key points and development trends of pressure testing machines
Introduction to the basic types and functions of pressure testing machines Pressure testing machine is an important testing equipment widely used in various ind...
2025 07-04

A comprehensive analysis guide of electro-hydraulic servo universal material testing machine
What is Universal Testing Machine? Universal Testing Machine (UTM) is a highly integrated, multifunctional, high-precision testing equipment specially designed ...

Project/Indicator/Model	WDW-50H	WDW-100H
Maximum test force	50KN	100KN
The accuracy level of the testing machine	Level 1
Force measurement range	1%-100% FS is not divided into bins throughout the whole process
Relative error of the test force indication	±1% or less
Force resolution	1/±300000 of the maximum test force, the whole process resolution remains unchanged
Deformation measurement range	0.5%-100%FS
Relative error of the deformation indication	Within ±1% of the indicated value
Deformation resolution	The maximum deformation is 1/±300000
The relative error of the displacement indication value	The ± of the indicated value is within 0.5%.
Displacement resolution	0.05μm
Force control rate adjustment range	0.05-10%FS/S
Relative error of force control rate	Within 1% of the ± of the set value
Beam speed adjustment range	0.01-500mm/min
Effectively compress space	1500mm
Effective test width	1000mm
Dimensions of the main engine (L×W×H)	1540×700×2250	1540×700×2350
Power supply	AC220V±10%50Hz,1.5KW	AC220V±10%50Hz,1.5KW
Weight of the main unit	Approx. 1200kg	Approx. 1500kg

WDW Series Microcomputer Controlled Ring Stiffness Testing Machine
