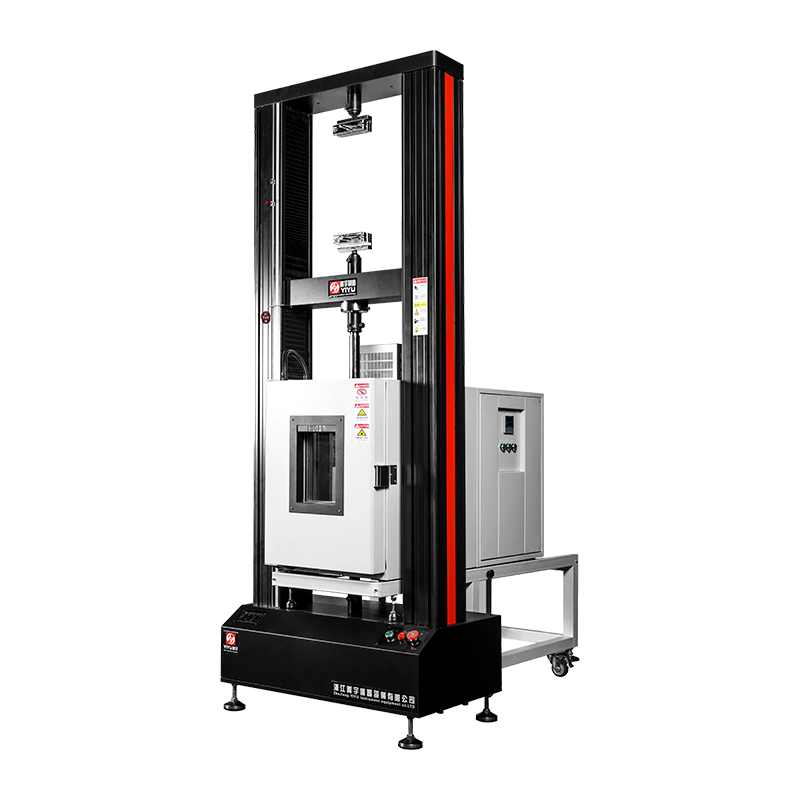

WDW Series Microprocessor Controlled Electronic Universal Testing Machine Environment Box

Project/Indicator/Model

WDW-50G

WDW-100G

Maximum test force

50KN

100KN

The accuracy level of the testing machine

Level 1

Force measurement range

1%-100% FS is not divided into bins throughout the whole process

Relative error of the test force indication

±1% or less

Force resolution

1/±300000 of the maximum test force, the whole process resolution remains unchanged

Environmental chamber test space

300×300×500

Environmental chamber temperature range

—40℃~+150℃

Fluctuations in the temperature of the environmental chamber

±0.5°C (no load)

Environmental chamber temperature deviation

≤±2°C (no load)

The rate at which the chamber heats up

1~3°C/min (no load)

Cooling rate of the environmental chamber

0.7～1℃/min(no-load)

Relative error of force control rate

Within 1% of the ± of the set value

The deformation rate adjustment range

0.05—10%FS/S

Relative error of deformation control rate

Within 1% of the ± of the set value

Beam speed adjustment range

0.01-500mm/min

0.01-500mm/min

Effective stretching space (without clamps)

1500mm

1500mm

Effective test width

560mm

560mm

Dimensions of the main engine (length×width×height)

900×540×2400mm

900×540×2400mm

Power supply

AC220V±10%50Hz,0.75KW

AC220V±10%50Hz,1.5KW

Weight of the main unit

Approx. 500kg

Approximately 700kg
