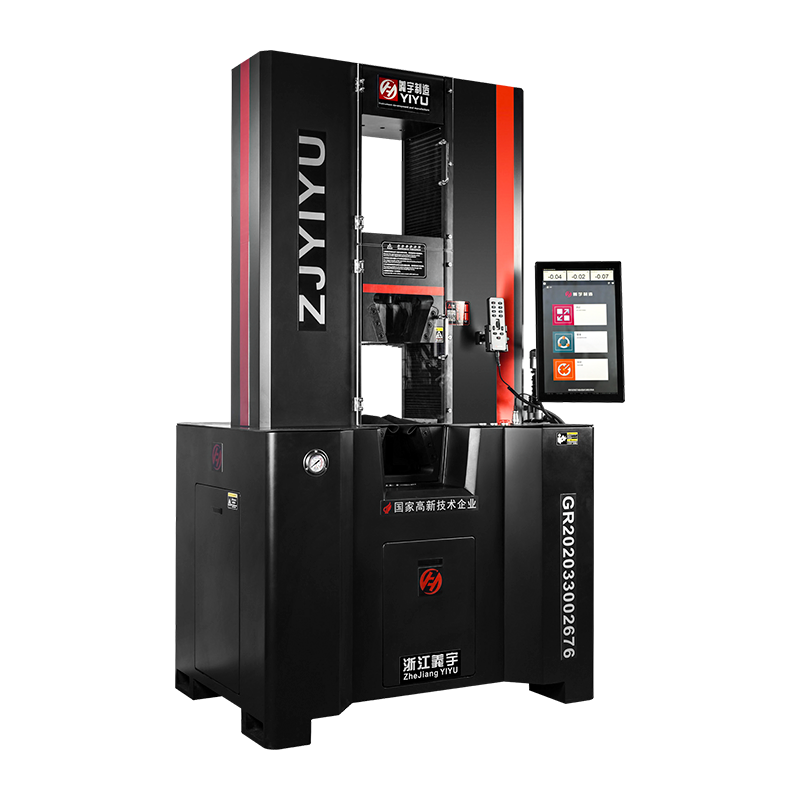

The WYW-SS Series Vibration-Free Microcomputer-Controlled Electro-Hydraulic Servo Universal Testing Machine is a high-rigidity, high-precision mechanical testing device developed and manufactured by Zhejiang Yiyu Instrument Equipment Co., Ltd., a national high-tech enterprise. This machine employs microcomputer-controlled electro-hydraulic servo technology and is specially equipped with a test vibration damping mechanism and an integrated oil source structure, with a load range covering 100kN to 2000kN. It is specifically designed for high-load mechanical performance testing, particularly maintaining extremely high stability during specimen fracture, and is widely used in industries such as steel structures and civil engineering.
Core Design and Technical Highlights
Patented Vibration-Free Design:
- High-Efficiency Vibration-Damping Base: Utilizing an integrated high-strength structural base design, equipped with a patented vibration-damping mechanism (Patent No.: CN112857985B), ensuring no severe vibration when the tensile test specimen fractures.
- Foundation-Free Installation: Eliminates the need for a dedicated concrete foundation, saving laboratory space and simplifying the installation process.
Safety and Durability:
- Fully Enclosed Sheet Metal Structure: Provides dust protection for core components, significantly extending equipment lifespan and reducing maintenance costs.
- Transparent Explosion-Proof Safety Door: Provides a clear view for real-time monitoring of the testing process while ensuring operator safety, meeting relevant safety standards.
Intelligent Interactive System:
- Large Touchscreen Industrial Computer: Equipped with a high-configuration 21.5-inch touchscreen computer featuring the unique SmartTest V10.0 user interface. The system runs smoothly, making the testing process simpler and more convenient.
- Multi-functional Control Box: Equipped with a comfortable-touch manual control box for easy fine-tuning during experiments.
Precision Hydraulic and Measurement System:
- 0.5-Grade High-Precision Sensor: Equipped with a 0.5-grade load sensor, offering excellent repeatability and long-term stability, ensuring authoritative and reliable measurement results.
- Reliable Clamping: Utilizes a built-in hydraulic chuck with a semi-open jaw and high-strength liner to ensure the sample does not slip during testing and the clamp is not easily worn.
- Low-Noise and Energy-Saving Power: The hydraulic system is driven by a servo motor and a radial piston pump, resulting in extremely low operating noise and minimal oil temperature rise. It only requires 220V household electricity to operate, making it both energy-saving and environmentally friendly.
Typical Application Areas
- Metal Testing: Tensile testing of metal bars, plates, threaded steel, high-strength bolts, and high-hardness metal materials.
- Industry Coverage: Aerospace, automotive industry, universities, research institutes, building materials quality inspection, etc.
Frequently Asked Questions (FAQ)
Q1: What are the practical benefits of the "vibration-free" technology in the WYW-SS series?
A: This technology absorbs the enormous energy generated during sample fracture through a patented shock-absorbing mechanism (patent number: CN112857985B), protecting the equipment's sensors and precision components from impact damage, while simultaneously making the laboratory environment quieter and safer.
Q2: Does this device really not require a foundation?
A: Yes. Due to its integrated high-strength base and advanced vibration-damping design, this device requires no foundation installation. It can be used simply by placing it on a flat surface, greatly reducing laboratory renovation costs.
Q3: What power source does this device use?
A: Its power source is highly efficient, requiring only ordinary 220V household/civilian electricity. Thanks to servo motor drive technology, it is not only environmentally friendly and energy-saving but also operates at extremely low decibel levels.
Q4: What can the SmartTest V10.0 software do?
A: This software is specifically optimized for a 21.5-inch touchscreen, providing an intuitive interface, supporting various mechanical testing modes, and enabling automatic data acquisition, analysis, and report generation.
Q5: Does this equipment meet international safety standards?
A: Yes. The WYW-SS series has passed ISO and CE international certifications, and its explosion-proof safety doors and other designs meet stringent global quality and safety standards.
|
Feature
|
1. Fully enclosed structure;
2. Transparent explosion -proof safety door;
3. Computer-main unit integrated design;
4. 0.5-class high-precision load sensor;
5. Integrated high-strength base with built-in shock absorption (patented);
6. Suitable for tensile tests of metal bars, plates, steel strands and other high-hardness metals;
7. ISO and CE certified.
|
|
Advantage
|
1. Dust-proof protection for key components;
2. Visible and safe testing process;
3. Space-saving design;
4. High data accuracy;
5. No need for concrete foundation, low noise/vibration during operation;
6. Patented shock absorption technology.
|
|
Benefit
|
1. Extends equipment service life and reduces maintenance costs;
2. Ensures operator safety while allowing real-time test monitoring;
3. Optimizes lab space utilization;
4. Guarantees reliable test results for accurate analysis;
5. Simplifies installation and avoids extra foundation inconvenience;
6. Meets global quality standards for wide applicability.
|
|
Evidence
|
1. International certifications: ISO and CE certified (compliant with global quality and safety norms);
2. Standard compliance: Meets relevant industry standards for material testing equipment;
3. Component & technology proof: 0.5-class load sensor with third-party calibration report;
4. Patented shock absorption mechanism (patent number available);
5. Safety verification: Explosion-proof safety door meets EN safety standards;
6. Application cases: Proven performance in metal material tensile testing scenarios (e.g., industrial QC，university labs).
|
