The YES-2000 is a piece of laboratory equipment specifically designed for testing the compressive strength of materials such as cement, concrete, and rock. This device incorporates advanced digital display technology, offering not only clear and intuitive test results but also exceptional operational stability, making it ideally suited for a wide range of material strength testing requirements.
Core Functions and Applications
This testing machine is not limited to basic compression tests; by equipping it with appropriate fixtures and measuring devices, it can perform a variety of testing functions:
- Compressive Strength Testing: Precisely measures the compressive limit of construction materials, ensuring the reliability of engineering data.
- Concrete Splitting Tensile Testing: When fitted with specialized fixtures, it can test the splitting tensile strength of concrete, meeting relevant standard requirements.
- Flexural Strength Testing: Suitable for analyzing the flexural performance of concrete and other construction materials.
- Static Compressive Elastic Modulus Testing: Supports the determination of a material's elastic modulus under static compressive conditions, providing a crucial reference for material performance research.
Structure and Design Features

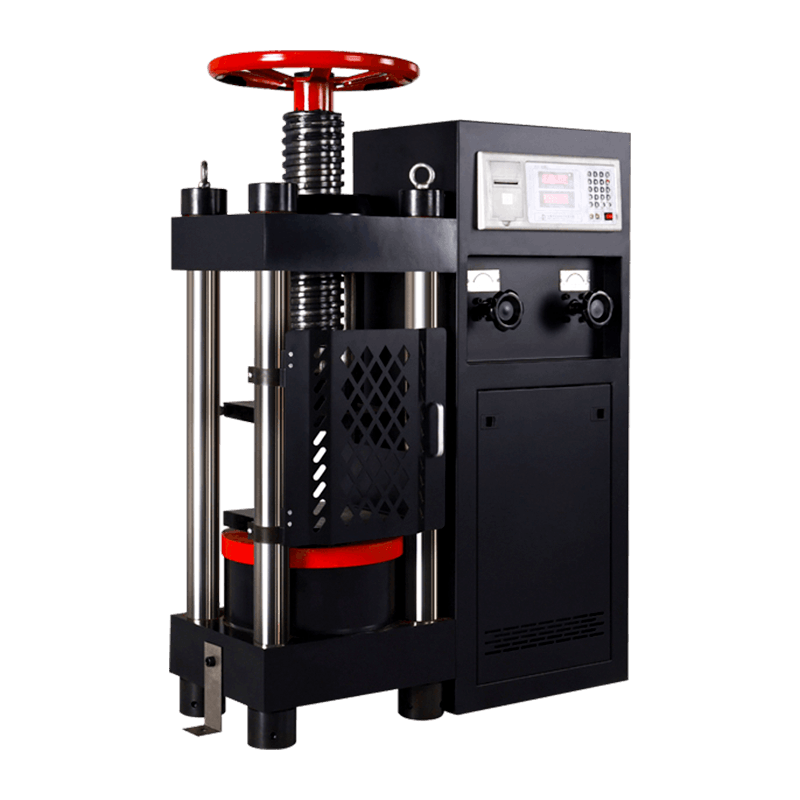

- Manual Adjustment Mechanism: The top of the machine is equipped with a large red handwheel, allowing for manual adjustment of the lead screw to quickly modify the size of the testing space.
- Intuitive Control Panel: A digital display meter and control buttons are integrated into the right side of the control cabinet, facilitating real-time monitoring of force values and ease of operation.
- Safety Protection Design: The testing area features a mesh safety guard door, which effectively blocks flying debris in the event of specimen fracture, thereby ensuring operator safety.
- Robust Integrated Frame: Adopts a four-column structural design, ensuring overall rigidity and stability during high-load testing.
Frequently Asked Questions (FAQ)
Q1: What is the difference between this "Digital Display Model" and the "Microcomputer-Controlled Model (YAW Series)"?
A: The YES-2000 is a Digital Display Model, primarily focusing on the clear visual display of numerical values and manual load control; whereas the YAW series is typically fully automatic and microcomputer-controlled, featuring more sophisticated closed-loop control capabilities and the ability to automatically generate test curves.
Q2: How should this equipment be maintained on a daily basis to ensure accuracy?
A: It is recommended to regularly check the hydraulic oil level. Additionally, the force-measuring system should be periodically calibrated by a professional agency—in accordance with relevant standards (e.g., GB/T 16825.1)—to ensure that the indicated value error remains within ±1%.
Q3: Is this equipment capable of performing tensile tests on steel reinforcement bars?
A: No, it is not. The YES-2000 is a specialized Compression Testing Machine (CTM), designed primarily for compression, flexural, and splitting tests. If you require tensile testing capabilities, we recommend selecting the manufacturer's WAW or WDW series Universal Testing Machines (UTM) instead.
