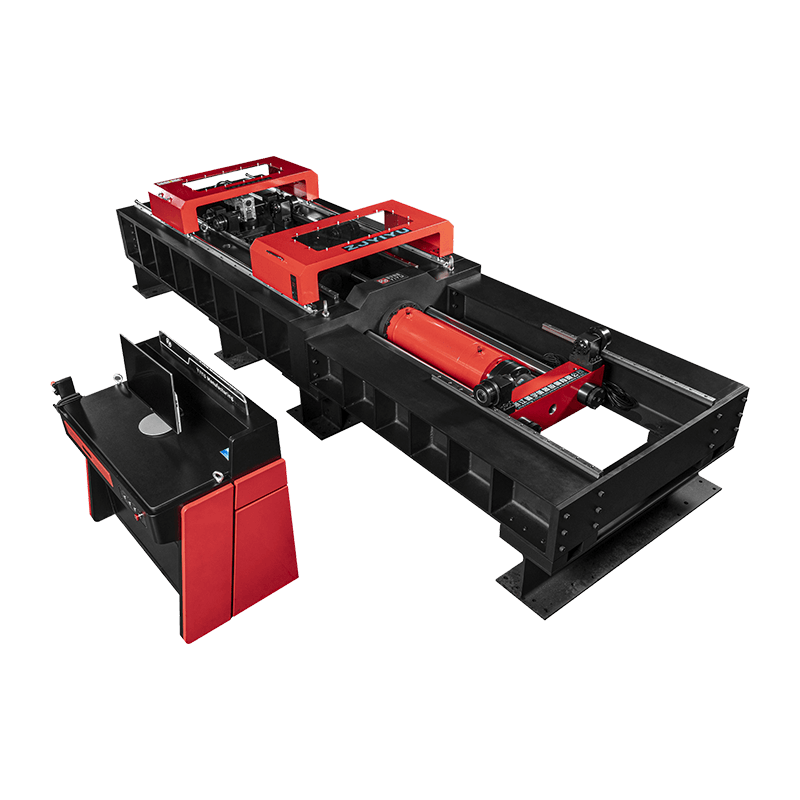

Microprocessor Controlled Electro-Hydraulic Servo Universal Testing Machine (Horizontal)

The Microprocessor-Controlled Electro-Hydraulic Servo Universal Testing Machine (Horizontal) is a high-rigidity, single-space horizontal testing unit developed and manufactured by Zhejiang Yiyu Instrument Equipment Co., Ltd. Utilizing advanced electro-hydraulic servo technology, this machine is specifically designed for high-load mechanical performance testing in sectors such as steel structures and civil engineering, offering exceptional stability and measurement accuracy.

Core Design and Functional Highlights

• High-Rigidity Horizontal Structure: The main unit features a horizontal design with a net weight of 6,500 kg, ensuring structural stability during high-load testing.

• Intelligent Software Support: Equipped with the latest SmartTest V10.0 software, the system offers a simple, fast, and user-friendly interface, greatly streamlining complex testing procedures.

• Precision Control and Measurement: The machine achieves an accuracy class of 0.5, with relative indication errors strictly controlled within ±1%, enabling precise, fully closed-loop control of parameters such as test force and displacement.

• Broad Material Compatibility: Suitable for tensile performance testing of metal rods, plates, fasteners, pipes and fittings, rebar, steel strands, wire ropes, and high-strength bolts.

• Flexible Customization: Key parameters—including maximum load, tensile space, piston stroke, and column spacing—can be custom-designed to meet specific user requirements.

Frequently Asked Questions (FAQ)

Q1: ​​What are the main advantages of the WWAW-1000DS horizontal design?
A: The horizontal design, combined with an extra-large tensile space of up to 1,500 mm (customizable), makes it ideal for high-load tensile testing of long specimens (such as long sections of wire rope, steel strands, or large pipes), providing a spacious operating area and stable specimen placement.

Q2: Which industries' products can this machine test?
A: This equipment is widely used in fields such as aerospace, the automotive industry, universities, research institutes, and construction material quality inspection to evaluate the mechanical properties of metals and various high-strength composite materials.

Q3: Is the SmartTest V10.0 software complex to operate?
A: No, it is not. The software is designed to enhance user experience, prioritizing simplicity, speed, and convenience; even complex servo-controlled tests can be easily performed via the intuitive interface.

Q4: How well does the equipment handle specimens of different specifications?
A: The equipment offers excellent versatility: it accommodates cylindrical specimens with diameters ranging from Φ14 to 40mm and flat specimens with thicknesses between 0 and 40mm. Additionally, the grips (jaws) can be customized to suit specific specimen dimensions.

Q5: What are the laboratory power supply requirements for installing this equipment?
A: The equipment supports AC 380V or 220V power supplies (±10%) with a total power rating of 3.5kW, making it compatible with standard electrical environments in various countries and regions.
