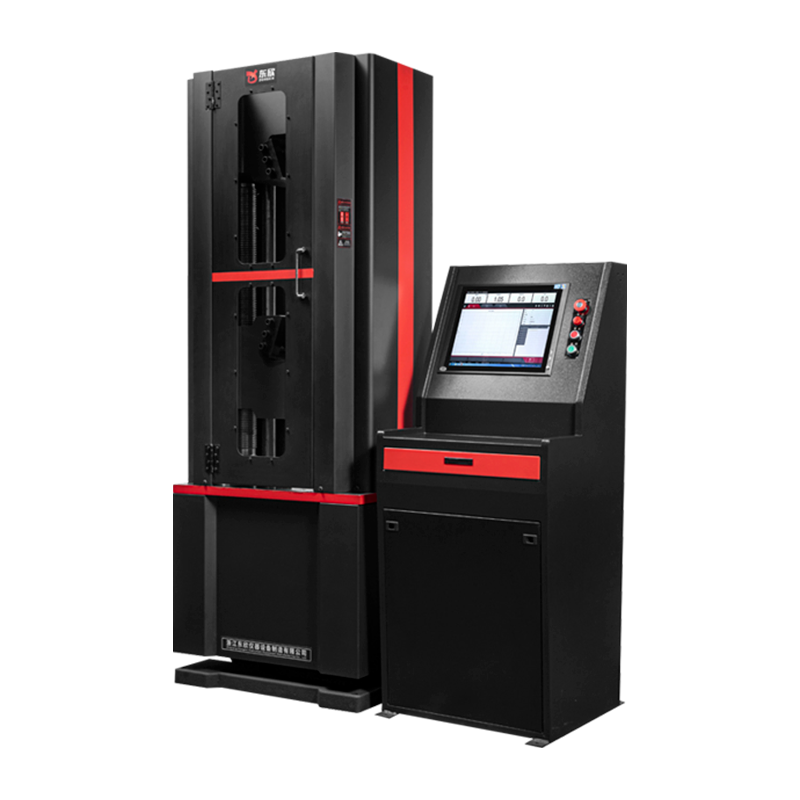

Function Overview: A high rigidity single space electro-hydraulic servo universal testing machine with a load range of 100KN-1000KN, suitable for large load mechanical performance testing in industries such as steel construction and civil engineering. Suitable for tensile testing of metal bars, metal plates, fastener pipes and pipe materials, threaded steel, high-strength bolts, and high hardness metal materials. And bending of metal materials, compression testing of concrete.
Meet Standards: ◆ GB/T 2611 General Technical Requirements for Testing Machines ◆ GB/T 16826 "Electro hydraulic Servo Universal Testing Machine" ◆ GBT 228.1 "Tensile Testing of Metallic Materials Part 1: Room Temperature Test Method"
TECHNICAL PARAMETERS
Project/Indicator/Model
WAW-100B
WAW-300B
WAW-600B
WAW-1000B
Maximum load
100kN
300kN
600kN
1000kN
Effective range
4%-100%F · S
Testing machine accuracy
Level 1
Structure
6 columns, jaws external cylinder, fully open jaws
Total motor power
AC 380V±10%,1.5kW
Relative error of the indication
±1%
Lower jaw lift speed
300mm/min
The maximum distance of the extruded space
650mm
650mm
680mm
700mm
Maximum clamping width of flat specimens
75mm
75mm
80mm
90mm
Flat specimen clamping thickness
0-15mm
0-15mm
0-20mm
0-40mm
Gripping diameter of the round specimen
Φ6-20mm
Φ10-28mm
φ13-36mm
φ14-40mm
The maximum distance between the fulcrums of the flexure test
