WAW-100/300/600/1000B Microcomputer Controlled Electro-Hydraulic Servo Universal Material Testing Machine

The WAW-100/300/600/1000B Microcomputer-Controlled Electro-Hydraulic Servo Universal Material Testing Machine is a high-rigidity, single-space testing system developed and manufactured by Zhejiang Yiyu Instrument Equipment Co., Ltd. With a load capacity range spanning 100kN to 1000kN, this series is specifically designed for high-load mechanical property testing in sectors such as steel structures and civil engineering, offering exceptional stability and testing precision.

Core Design and Technical Highlights

• High-Rigidity Six-Column Structure: The main unit features a six-column frame design combined with externally mounted grip cylinders and an open-style grip structure, ensuring both structural rigidity and operational convenience during high-load testing.

• Intelligent Servo Control: Utilizing advanced microcomputer-controlled electro-hydraulic servo technology, the system enables high-precision, automated control of the testing process.

• Superior Measurement Accuracy: The equipment meets Class 1 accuracy standards; the relative error of the test force indication is controlled within ±1%, with an effective measurement range of 4% to 100% of Full Scale (FS).

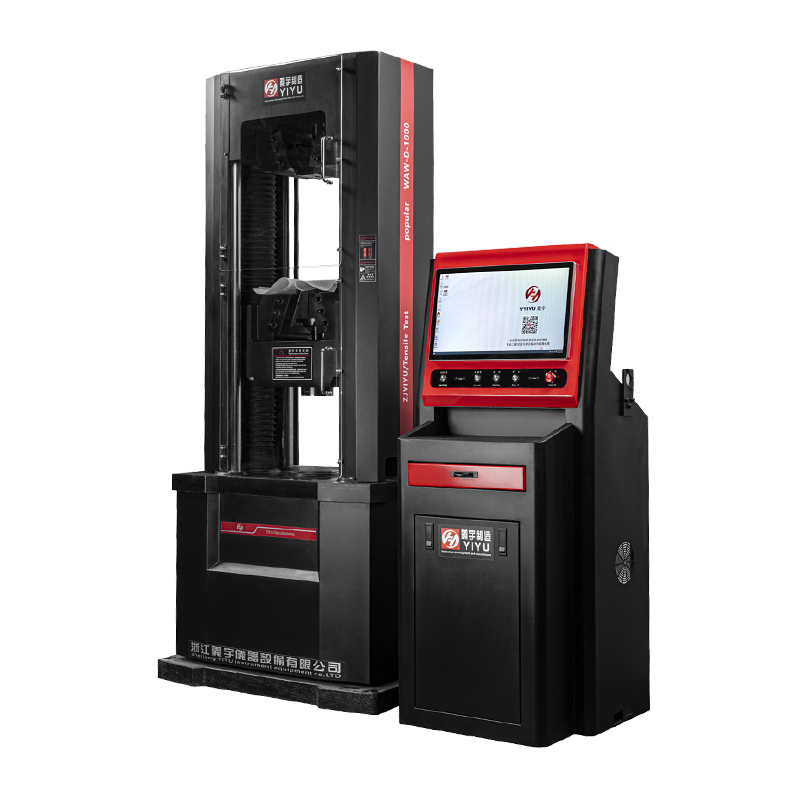

• Independent Control System: As shown in the image, the equipment is equipped with a standalone floor-standing control cabinet (dimensions: 600x650x1400mm) featuring a built-in industrial display screen, allowing operators to monitor test data in real-time.

Key Functions and Application Areas

This series serves as a versatile material testing platform capable of meeting a wide range of mechanical property testing requirements:

• Tensile Testing: Suitable for metal rods, plates, fasteners, pipes and fittings, rebar, high-strength bolts, and various high-hardness metal materials.

• Bending Testing: Can be used to evaluate the bending properties of metal materials (maximum support span: 300mm).

• Compression Testing: Supports compressive strength testing for construction materials such as concrete.

Compliance with Standards

The design and manufacture of this equipment strictly comply with the following national standards:

• GB/T 2611 "General Technical Requirements for Testing Machines"
• GB/T 16826 "Electro-hydraulic servo universal testing machine"
• GB/T 228.1 "Metallic materials — Tensile testing — Part 1: Method of test at room temperature"

Frequently Asked Questions (FAQ)

Q1: ​​Can this machine perform both tensile and compression tests?
A: Yes. It features a single-space design; by adjusting the testing space, it can perform tensile and bending tests on metallic materials as well as compression tests on concrete, making it ideal for comprehensive laboratories.

Q2: How is the testing space size adjusted?
A: The equipment is equipped with a movable lower grip assembly. With a lifting speed of up to 300 mm/min, it can quickly adjust to the appropriate testing height based on the sample size.

Q3: Is the equipment difficult to maintain?
A: No, it is not complex. Its external cylinder grip structure facilitates easy observation and routine cleaning. Furthermore, as a professional manufacturer, Zhejiang Yiyu Instrument Equipment Co., Ltd. has established a dedicated pre-sales and after-sales service system to ensure the equipment's long-term operation.

Q4: Why is the 1000B model significantly heavier than other models?
A: The WAW-1000B is designed to withstand test forces of up to 1000 kN; consequently, its main structure is larger and more robust (weighing 2100 kg) to ensure testing accuracy and structural safety under maximum loads.

Q5: Are the measurement data reliable?
A: Yes, they are reliable. The equipment meets Class 1 accuracy standards, with a relative indication error within ±1%, and complies with multiple rigorous national technical standards, including GB/T 16826.
