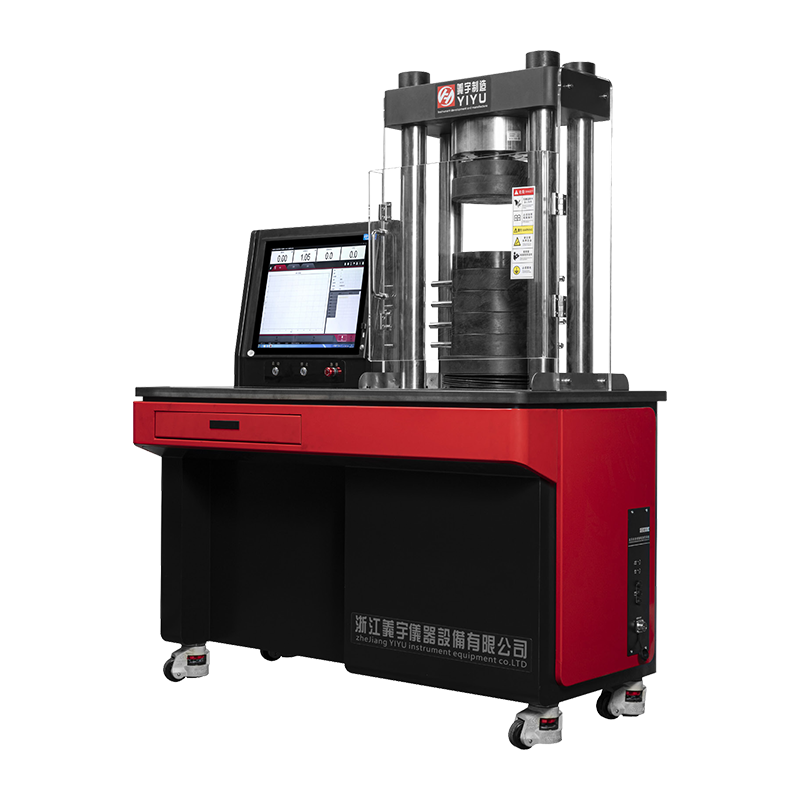

The YAW series testing machine, developed and manufactured by Zhejiang Yiyu Instrument Equipment Co., Ltd., is a high-end precision instrument designed specifically for testing the mechanical properties of building materials, engineering plastics, and composite materials. It perfectly combines strong structural rigidity with advanced microcomputer control technology, providing stable, reliable, and highly automated testing solutions.
Robust and Durable Structural Design
- High-Rigidity Four-Column Structure: Utilizing a four-column structure design, it possesses extremely high mechanical rigidity, capable of withstanding immense testing pressure, ensuring stability and high repeatability during testing.
- Laboratory-Grade Worktable: Equipped with an industrial-grade worktable, it boasts excellent waterproof, moisture-proof, corrosion-resistant, and scratch-resistant properties, easily handling various complex laboratory environments and ensuring the equipment remains like new for a long time.
- Mobile and Convenient: The base is equipped with multi-functional casters, making the movement and rapid positioning of this heavy-duty precision instrument within the laboratory effortless.
Superior Power and Measurement System
- Silent and Energy-Saving Drive: The hydraulic system utilizes a servo motor paired with a radial piston pump, achieving ultra-low decibel operation. This not only provides researchers with a quiet working environment but also requires only a 220V household power supply, offering significant energy-saving and environmental advantages.
- High-Precision Acquisition: Built-in high-precision load sensors achieve a testing accuracy of 0.5%. Microcomputer-controlled constant load rate ensures extremely high consistency in the resolution of the test force throughout the process.
Intelligent Interaction and Safety Assurance
- Immersive Touchscreen Experience: Equipped with a 17-inch large-size touchscreen industrial computer featuring the proprietary SmartTest interface, offering extremely smooth and logical operation.
- Comprehensive Visual Protection: The equipment is equipped with transparent explosion-proof safety nets on three sides. This design provides a robust physical barrier to prevent sample bursting and splashing while ensuring the operator can observe the experimental process from all angles.
Wide Range of Applications
This equipment is suitable for testing the compressive strength, flexural strength, and lightning strike strength of the following materials:
- Building Materials: Cement and its products, mortar, hollow bricks, stone, refractory bricks, wood.
- Industrial Products: Engineering ceramics, engineering plastics and their products, wall panels, blocks, etc.
Core Technical Parameters
- Maximum Test Force: Covers multiple specifications including 300kN, 600kN, and 1000kN.
- Accuracy Class: 0.5 grade.
- Indication Error: Within ±0.5%.
- Piston Stroke: 80mm.
FAQ
Q1: What are the advantages of the YAW series in terms of energy consumption compared to traditional presses?
A: The biggest advantage lies in its highly efficient servo control system. This equipment requires only 220V household electricity to stably drive pressure tests up to 1000kN, and its energy consumption is extremely low when under no-load or constant load, making it ideal for modern, energy-efficient laboratories.
Q2: How do I obtain test results and reports?
A: The entire testing process is controlled by a microcomputer. Using SmartTest software, pressure values are displayed in real-time on a 17-inch screen. After the test, results are automatically calculated, generated, and exported by the software, requiring no manual processing.
Q3: Will the three-sided safety net design affect sample placement?
A: No. While the safety net provides a three-sided barrier for safety, its design is ergonomic, allowing for easy opening or retrieval of samples when not in testing mode, and the transparent material maximizes the experimental observation field.
Q4: Is this equipment suitable for testing smaller materials?
A: Absolutely. For example, the YAW-300 model is specifically designed for mortar compressive strength testing. Its test width and space have been optimized to provide excellent test resolution for small-sized, high-strength materials.
